Astell Scientific Front Loading Autoclaves Range, Swiftlock (120-344L)

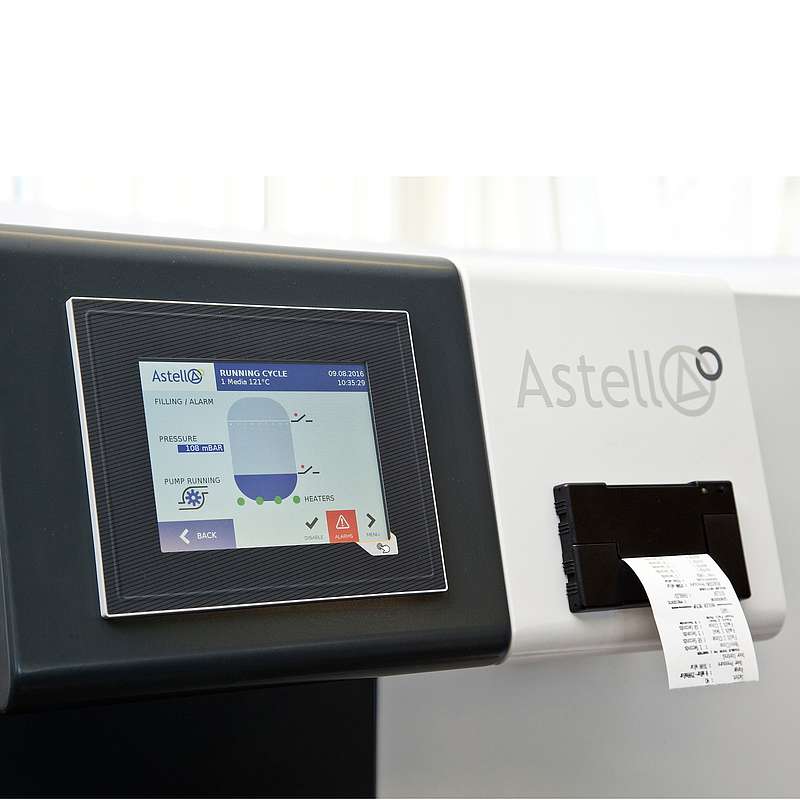

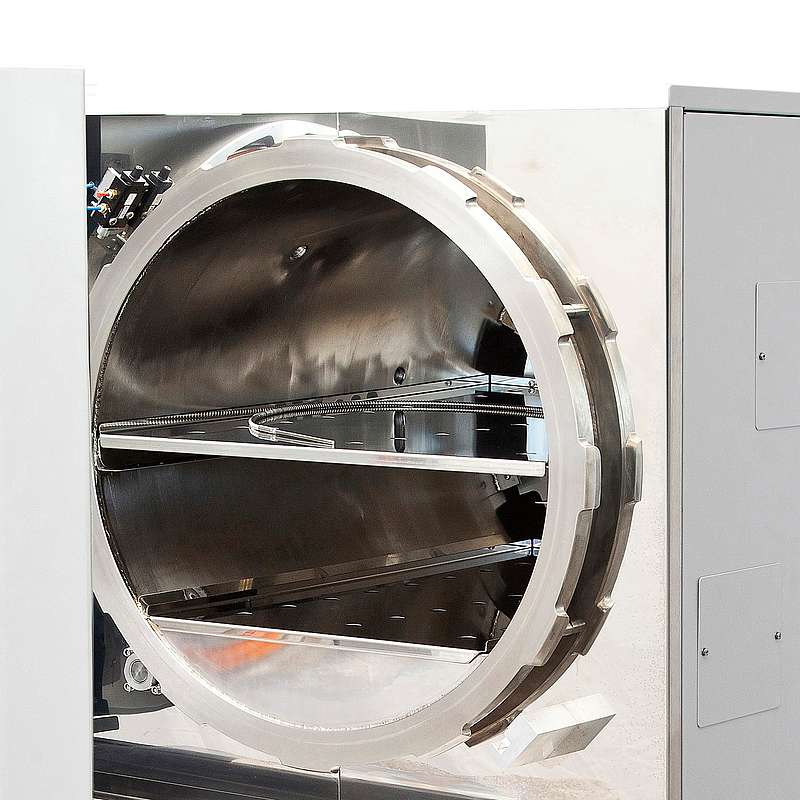

• Delayed start and media holdwarm feature. • Over-temperature protection, external pressure gauge, cooling lock, safety valve test program and emergency stop button. • Validation port, drain valve, electro-polished chamber and unique 'Swiftlock' closure system. • With 5.7" colour touch screen controller and external USB port. • Timed/Pulsed Freesteaming. • For more details or requests, please contact us. • JKKP/DOSH approved
Product Specifications
The 120 - 344 litre front loading autoclave offers five chamber sizes, increased in capacity from the top loading range. The 'Swiftlock' front loading range of autoclaves allows the user a greater choice of options unavailable on the smaller ranges, as well as easy loading access.
Astell’s additional options include Integral Steam Generators, Heated Jackets, Simple/Advanced Vacuum and a choice of Cooling options to name but a few. Learn more about each of these by viewing the pages below or clicking the View Product Options button:
Steam Generation options
Heated Jackets
Simple and Advanced Vacuum
Cooling options
| Model No. | Steam Source | Volume (L) | Power Supply | Chamber dia x depth (mm) | Overall Dimension (WxHxD) |
| ASB260BT | Heaters in Chamber | 120 | Single or 3 Phase, 7/10kW | 450 X 635 | 685 X 1490 X 1100 |
| ASB270BT | 153 | 450 x 865 | 685 x 1490 x 1310 | ||
| ASB280BT | 247 | 3 Phase, N&E, 12kw | 600 x 735 | 900 x 1575 x 1370 | |
| ASB290BT | 290 | 3 Phase, N&E, 16kw | 600 x 885 | 900 x 1575 x 1370 | |
| ASB300BT | 344 | 3 Phase, N&E, 16kw | 600 x 1085 | 900 x 1575 x 1570 |
Available Options
