Astell Scientific Top Loading Autoclave Range, Swiftlock (95-135L)

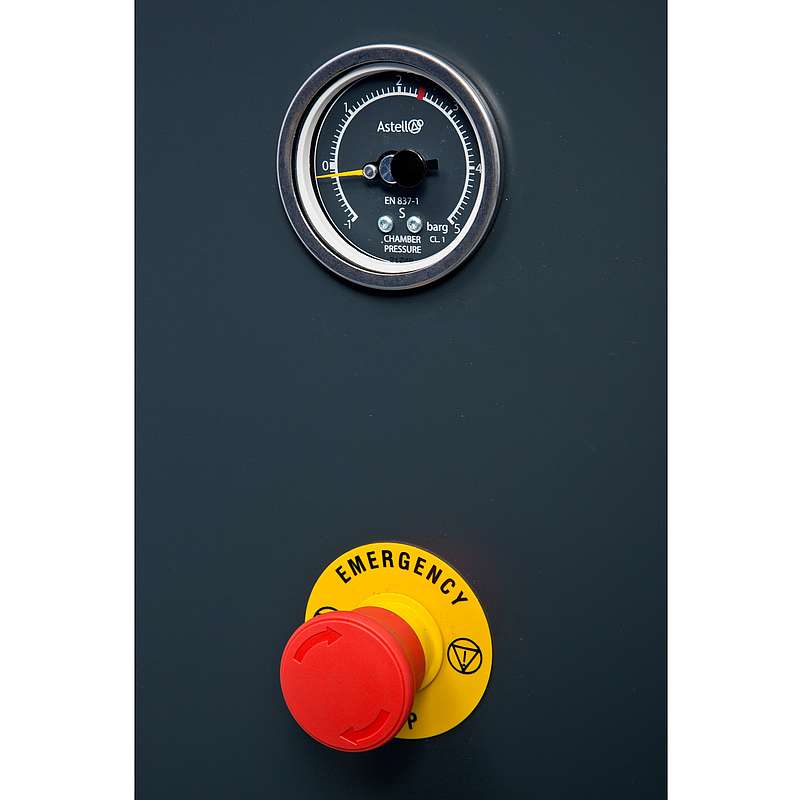

• Delayed start and media holdwarm feature. • Over-temperature protection, external pressure gauge, cooling lock, safety valve test program and emergency stop button. • Validation port, drain valve and electro-polished chamber. • With 5.7" colour touch screen controller and external USB port. • Castor mounted, Timed/Pulsed Freesteaming. • JKKP/DOSH approved

ASTELL TOPLOADING AUTOCLAVE BROCHURE

Available options

Product Specifications

The 95 - 135 litre toploading autoclave range offers increased chamber sizes compared to the 'Compact' units, as well as featuring advanced options not available on smaller sized autoclaves, including Heated Jackets, Integral Steam Generators, Simple/Advanced Vacuum and Cooling options.

These options enable a top loading sterilizer to be tailored to the needs of the customer by speeding up cooling, dealing with liquids, porous-type loads and allowing a wider range of items to be efficiently processed.

Model No.	Steam Source	Volume (L)	Power Supply	Chamber dia x depth (mm)	Overall Dimension (WxHxD)
EAU-AMA250BT	Heaters in Chamber	95	Single or 3 Phase, 7/10kW	456 x 448	660 x 940 x 840
EAU-AMA260BT		120		456 x 588	660 x 1070 x 840
EAU-AMA270BT		135		456 x 680	660 x 1150 x 840
