DURAN® Filtering Apparatus, 47mm diameter membranes
- Manufactured from 3.3 expansion borosilicate glass
- The graduated funnel simplifies dosing and analysis
- Supplied with an interchangeable glass sieve plate and porosity 2 sintered glass filter disc for maximum flexiblity in filtering applications. Other porosity sintered discs are available separately
- Easy and quick assembly and disassembly for cleaning and replacement of filters and PTFE adapter.
- A GL14 plastic hose connection (suitable for tubing with an ID of 8 mm) enables the easy and safe connection of vacuum tubing
- All components are available as spare parts
- Fired-on, highly durable white print
Product Specifications
| Catalog No | Content | Quantity |

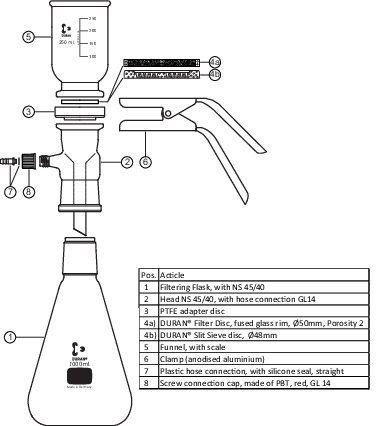

| GIF-25710.5451 | 243173203 - Head standard ground joint 45/40 294002803 - PTFE adapter disc 290763609 - Clamp (anodised aluminium) 247223602 - Funnel with 250 mL scale 242025404 - Filtering flask with standard ground joint 45/40, 1000 mL 292550603 - Plastic hose connection with silicone seal, straight, GL 14 292270508 - screw connection caps, red, PBT, GL 14, bore 9.5 mm 252050208 - DURAN® filter disc with glass rim, 50 mm, porosity 2 213403108 - DURAN® slit sieve disc, 48 mm | 1 Kit |
| GIF-25710.6304 | 243173203 - Head standard ground joint 45/40 294002803 - PTFE adapter disc 290763609 - Clamp (anodised aluminium) 247224401 - Funnel with 500 mL scale 242026306 - Filtering flask with standard ground joint 45/40, 2000 mL 292550603 - Plastic hose connection with silicone seal, straight, GL 14 292270508 - screw connection caps, red, PBT, GL 14, bore 9.5 mm 252050208 - DURAN® filter disc with glass rim, 50 mm, porosity 2 213403108 - DURAN® slit sieve disc, 48 mm | 1 Kit |
Available Options
| SKU | Description /size | Stocks | Unit Price (RM) | Quantity |
|---|---|---|---|---|
|
SKU: GIF-25710.5451 DURAN filtration apparatus complete with PTFE insert and clamp (funnel 250 mL, filtering flask 1 000 mL) 5 units left |
DURAN filtration apparatus complete with PTFE insert and clamp (funnel 250 mL, filtering flask 1 000 mL) | 5 units left | RM 3,156.08 |
RM 3,156.08
|
|
SKU: GIF-25710.6304 DURAN filtration apparatus complete with PTFE insert and clamp (funnel 500 mL, filtering flask 2 000 mL) 3 units left |
DURAN filtration apparatus complete with PTFE insert and clamp (funnel 500 mL, filtering flask 2 000 mL) | 3 units left | RM 3,669.45 |
RM 3,669.45
|
