PYREX® Aspirator bottles, ground glass side-socket and neck
- Complies with ISO 4796
- Ground side socket ST size 29/32 to accept stopcock assemblies
- Ground neck
- Supplied with glass stopper
- Compatible with stopcocks GGA-1568/04M or GGA-1571/02M
- Stopcock (sold separately)

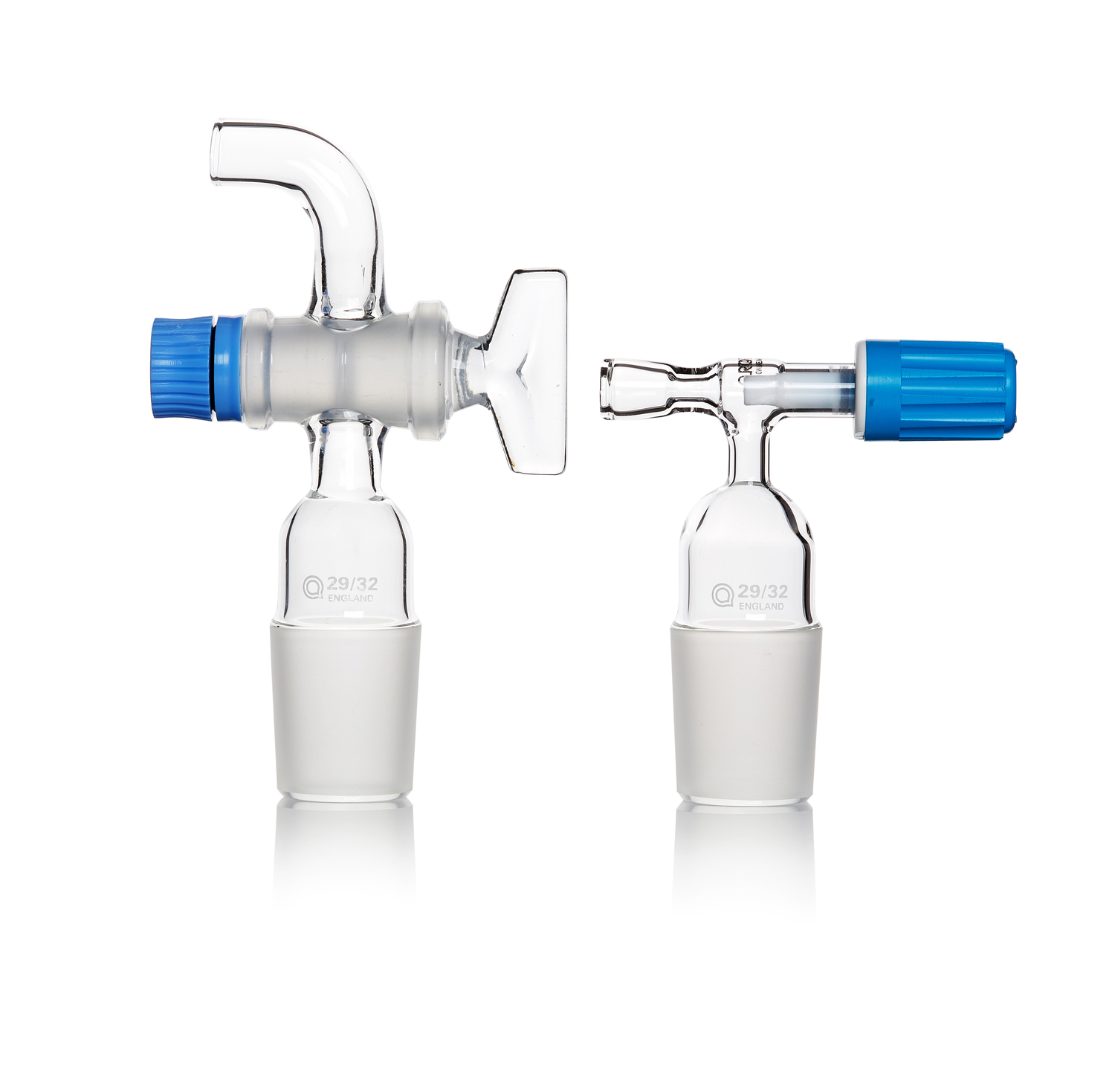

PYREX® Aspirator stopcocks with ground cone
- For use with Aspirator bottles 1541: and 1569
- GGA-1568/04M with ROTAFLO® PTFE key which is chemically inert and requires no lubrication
- GGA-1571/02M with traditional glass key
Product Specifications
| Catalog No | Capacity (mL) | Body OD (mm) | Neck ID (mm) | Height (mm) | Stopper Size | Quantity |
| GGA-1569/16D | 5000 | 181 | 45 | - | 45/40 | 1 |
| GGA-1569/18D | 10000 | 227 | 60 | - | 60/46 | 1 |
| GGA-1569/22D | 20000 | 288 | 60 | - | 60/46 | 1 |
| Catalog No | Stopcock Bore Diameter (mm) | Cone (NS) | Overall Height (mm) | Quantity |
| GGA-1568/04M | - | 29/32 | - | 1 |
| GGA-1571/02M | - | 29/32 | - | 1 |
Available Options
| SKU | Description /size | Stocks | Unit Price (RM) | Quantity |
|---|---|---|---|---|
|
SKU: GGA-1569/16D PYREX® Aspirator Bottles, 5,000 ml (per pc) 0 units left |
PYREX® Aspirator Bottles, 5,000 ml (per pc) | 0 units left | RM 1,320.00 |
RM 1,320.00
|
|
SKU: GGA-1569/18D PYREX® Aspirator Bottles, 10,000 ml (per pc) 0 units left |
PYREX® Aspirator Bottles, 10,000 ml (per pc) | 0 units left | RM 2,011.00 |
RM 2,011.00
|
|
SKU: GGA-1569/22D PYREX® Aspirator Bottles, 20,000 ml (per pc) 0 units left |
PYREX® Aspirator Bottles, 20,000 ml (per pc) | 0 units left | RM 3,161.00 |
RM 3,161.00
|
|
SKU: GGA-1571/02M Stopcock 29/32, Glass Key for Aspirator Bottle 0 units left |
Stopcock 29/32, Glass Key for Aspirator Bottle | 0 units left | RM 335.00 |
RM 335.00
|
|
SKU: GGA-1568/04M Stopcock 29/32, ROTAFLO® PTFE Key for Aspirator Bottle 0 units left |
Stopcock 29/32, ROTAFLO® PTFE Key for Aspirator Bottle | 0 units left | RM 215.00 |
RM 215.00
|
