2L Short Path Distillation Kit

-ISO approved, CE certification reliable quality guarantee. -Capacity: 2L, 5L, 10L optional - Contact us for pricing

Available options

Product Specifications

Based on the difference of mean free path of molecules under high vacuum condition, it can separate liquid-liquid mixture under the temperature which is far lower than boiling point.

  • High quality and heavy duty Borosilicate 3.3 glass for durability.
  • Vacuum-jacketed distillation adapter, with 4 Vigreux stages.
  • 2L heating mantle with magnetic stirring function, available in 220V.
  • Detachable plastic 3/8”(10mm) hose barbs for maximized safety during operation.
  • Carefully designed 3-way cow adapter accommodates up to 3 pcs of 250mL flasks.
  • Cold trap protects the vacuum pump from contamination and damage of vapors.
  • Flexible choice of vacuum pumps and heater/chillers.

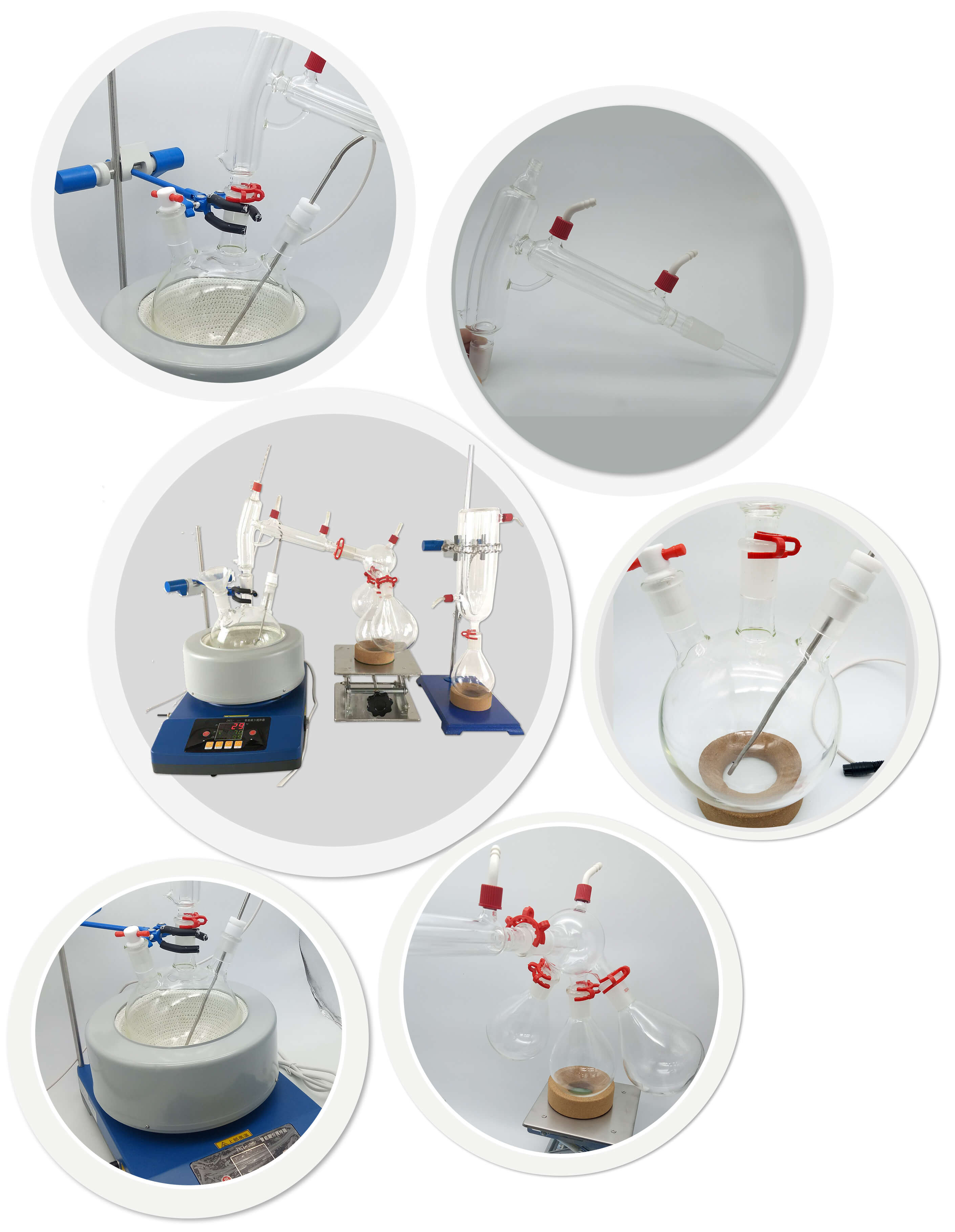

Part Description Of Short Path Distillation System

Quantity

2L magnetic stirring heating mantle

1 Set

Desktop precise chiller, -25℃ ~ RT

1 Set

Glass cold trap with 1L receiving flask

1 Set

Rotary vane oil pump, 5CFM (2L/S)

1 Set

Round bottom flask, 2L, 3-neck, hand blown, 24/40

1 Pcs

Short path distillation head, vacuum jacketed,   24/40

1 Pcs

Thermometer inlet adapter, internal thread, 24/40

1 Pcs

Distillation cow receiver, 1-to-3, 24/40

1 Pcs

Round bottom flask, 250ml, 1-neck, hand blown, 24/40

3 Pcs

Neck clamp, 24/40, plastic

6 Pcs

Hexagonal glass bottle stopper, 24/40

1 Pcs

Cork ring stand for flask, 110mm

3 Pcs

Cork ring stand for flask, 140mm

1 Pcs

Silicone tubing, 8mm, I.D, 24 O.D

5m

Stainless steel lab jack, 8*8cm

1 Pcs

Glass thermometer, 300℃

1 Pcs

2-prong condenser clamp

1 Pcs

Available Options

SKU Description /size Stocks Unit Price (RM) Quantity

SKU: SPD-2L

2,000 ml (per pc)

0 units left

 2,000 ml (per pc) 0 units left RM 0.01 RM 0.01
