1L LIQUID SAMPLER WITH BOTTOM INLET, STAINLESS STEEL
Other option available upon request : - 500ml, 2L, 2.5L capacity is available - Plexiglas Type is also available Cable not included
Product Specifications

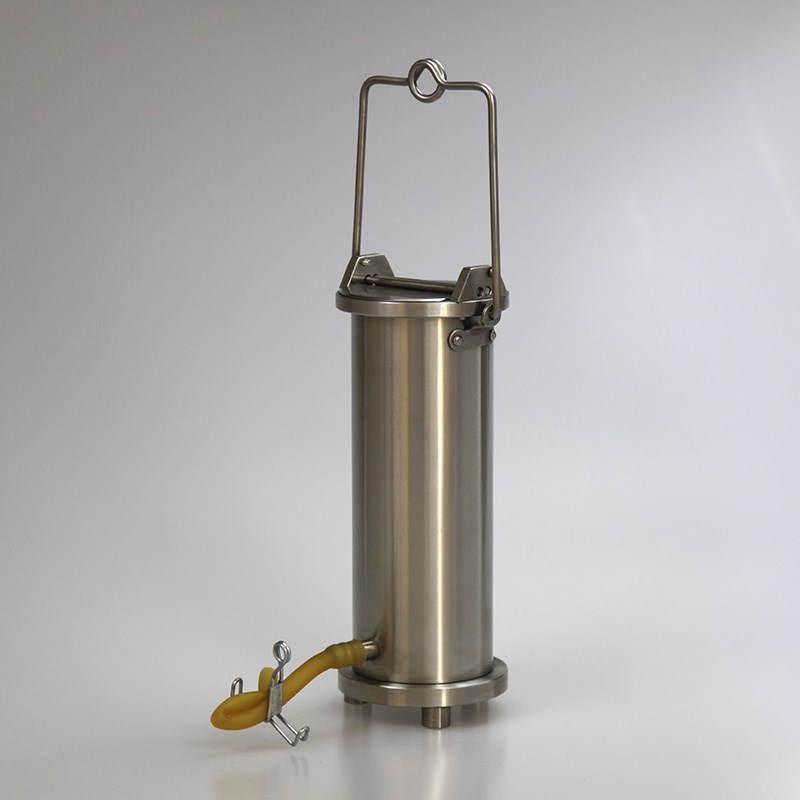

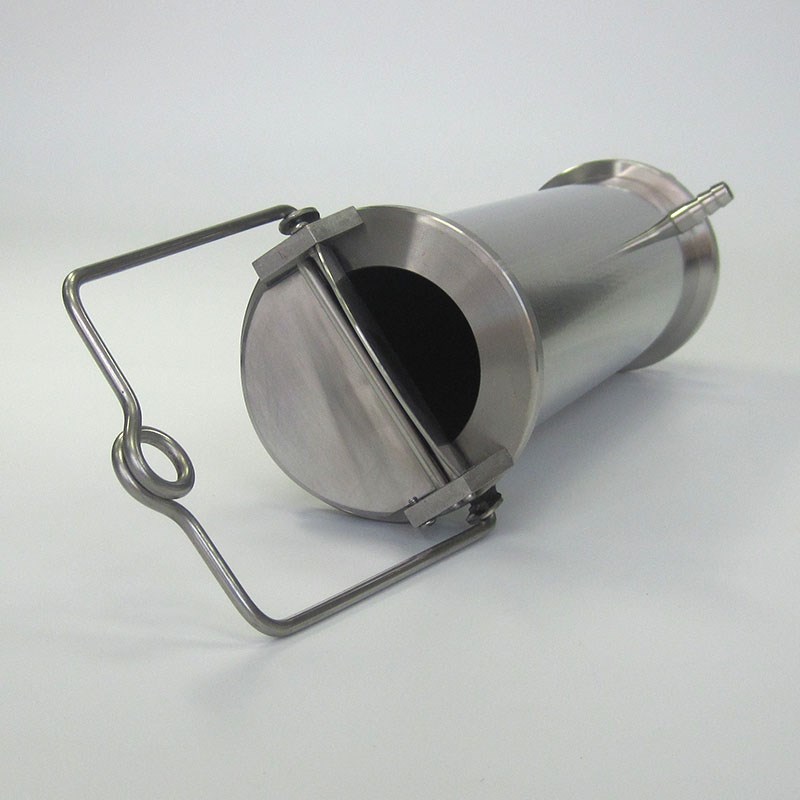

It consists of the main body of the sampler, two semi-circular top covers with a shaft (upper inlet port) and a lower valve (lower inlet port). which is opened and closed by closing the top and bottom covers.
When sampling, the water sampler continues to fall, the valve at the bottom opens under pressure, then the top ramp port is opened, at this time, the sample is replaced with constant. When the sampler reaches the side depth, the bottom valve and top cover automatically nearly reach the sampler. Any sample depth may be taken, and the sample is appropriate.
This product belongs to Bottom Point Sampler. Stainless steel 304. Complete with rubber pipe and water stop clamp. Adopts No-stick rivet hatching technology.
It is suitable for collecting organic materials, gris, micro-organisms, aquatic organisms and liquid acids and alkalies in rivers or seas. Especially suitable for collecting seawater and acid-alkali and other abrasive samples. It can sample any rating with proper
Capacity: 500ml, 1000ml, 2000ml, 2500ml
| Capacity (ml) | Size(mm) | Weight (kg) |
| 500 | 70*195 | 1,455 |
| 1000 | 75*285 | 1875 |
| 2000 | 105*385 | 2,945 |
| 2500 | 105*425 | 3.31 |
Method of use:
(1) Before sampling, the latex pipe should be closed to the water inlet, so that the water stop clamp is attached to the latex pipe, so that the water inlet of the water sampler is closed.
(2) Attach the sampler rope/metal chain firmly to the water sampler. Bring the water sampler into the pond/lake/ocean/container at a uniform rate of not more than 1 m/s.
(3) Sample is injected at the bottom inlet port of the sampler and replaced at the top exchange port. At this time, the samples obtained are representative samples of this depth.
(4) When the sampler sinks to the required side depth and still, the bottom valve and top cover are closed automatically;
(5) Slowly lift the sampler, do not touch the bottom of the sample to avoid sample leakage, remove the sampler and open the water stop binder, transfer the sample obtained to the sample holder, and finish sampling.
Available Options
| SKU | Description /size | Stocks | Unit Price (RM) | Quantity |
|---|---|---|---|---|
|
SKU: LSX-BCS-1L 1,000 ml (per pc) 0 units left |
1,000 ml (per pc) | 0 units left | RM 3,400.00 |
RM 3,400.00
|
