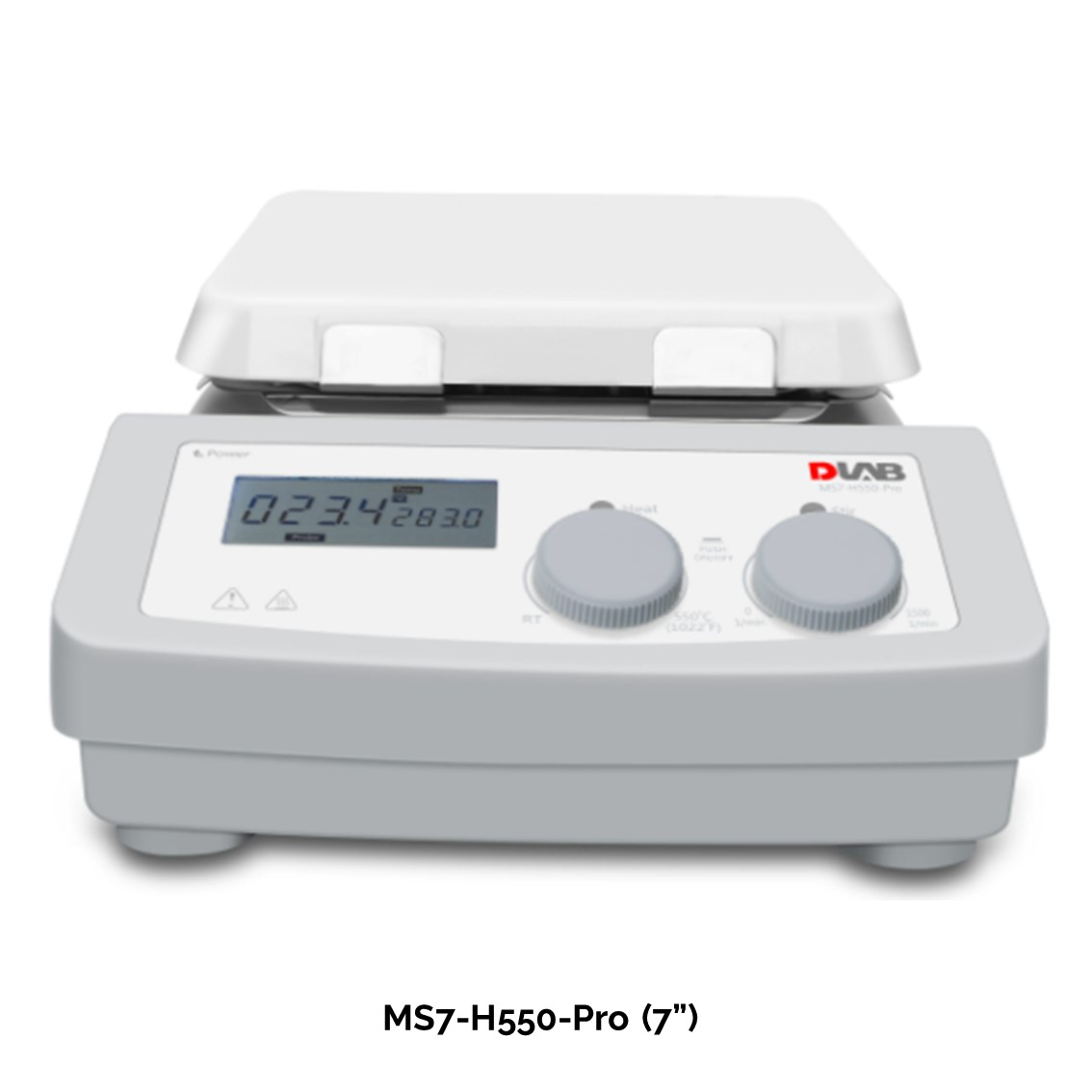

DLAB MS7-H550-Pro 7" LCD Digital Magnetic Hotplate Stirrer
• LCD display for precise monitoring of speed and temperature • Built-in PID controller ensures safe heating of the medium with overheating protection • Max. heating plate temperature 550°C • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer • External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C • Digital speed controlling, max. speed at 1500rpm • Outstanding brushless DC motor enables more stirring power • Two rotating knobs enable easy adjustment of speed and temperature • The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off • Remote function provides PC control and data transmission
Product Specifications
| Specifications | MS7-H550-Pro |
| Work plate Dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 1050W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity, [H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-550°C,increment 1°C |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) |
| Overheating protection | 580°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Data connector | RS232 |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 5.3kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
| Cat. No. | P/N | Descriptions | Power supply |
| 8030122111 | MS7-H550-Pro | LCD Digital 7’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate，heating temperature up to 550°C | |
| UK plug,200V-240V/50Hz/60Hz | |||
| 8030122111 | MS7-H550-Pro package |
Include：LCD Digital 7’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate，heating temperature up to 550°C（8030132117）+ PT1000A (18900016) + support clamp (18900017) |
Available Options
| SKU | Description /size | Stocks | Unit Price (RM) | Quantity |
|---|---|---|---|---|
|
SKU: EDL-8030122111 EQX-MS7-H550-Pro 0 units left |
EQX-MS7-H550-Pro | 0 units left | RM 2,421.00 |
RM 2,421.00
|
|
SKU: EDL-8130122111 EQX-MS7-H550-Pro (7") Package 0 units left |
EQX-MS7-H550-Pro (7") Package | 0 units left | RM 2,467.00 |
RM 2,467.00
|
