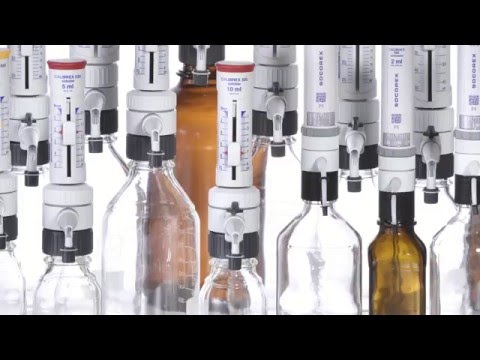

Socorex Bottle Top Dispenser, Calibrex


Calibrex Universal (ESC-520)

Designed for performance handling of liquids from a large variety of bottles and flasks, the dispensers combine the latest in dosing technology, high tech materials and ergonomic design. As a result, users benefit from universal chemical compatibility, ease of operation, superior safety and low maintenance. Volumes range 0.25 to 10 mL.
- Two-year warranty.
-Superior chemical resistance
-Long lasting performance stability
-Comfortable and convenient in use
-Solid, yet simple construction
-Instant volume setting
-In-lab calibration
-Autoclavable at 121°C fully assembled
-Supplied with bottle adapters

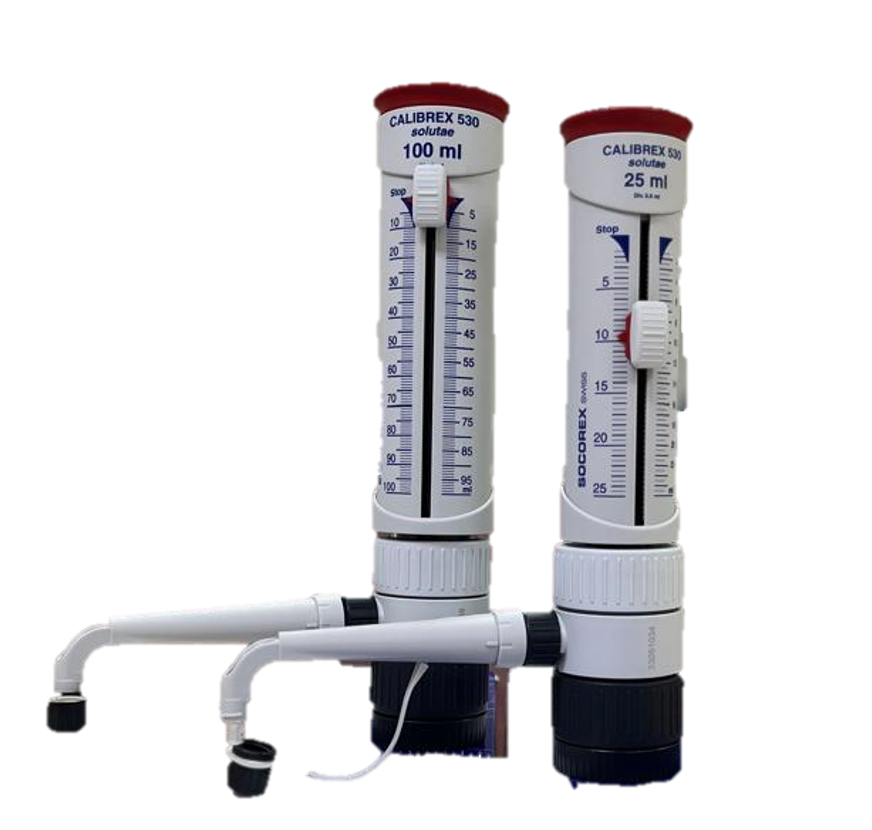

CalibrexTM solutae (ESC-530)

Fitting on most reagent bottles, this new dispenser generation is intended for the safe and reproducible liquid distribution. Excellent chemical resistance, robustness, ease of use and maintenance are all the more important for whom want to perform in the lab.

-Two-year warranty.
-Flow control system with stopcock (optional- not included)
-Permanent fluid path visibility
-Integrated calibration system
-Choice of adjustment button with each unit
-Long lasting performance stability
-Autoclavable at 121°C fully assembled



Calibrex Universal

                                           Inaccuracy (Rel. err.%)              Imprecision (CV %)
Cat. No.  Vol. mL Div. mL Min. vol. Mid. vol. Max. vol. Min. vol. Mid. vol. Max. vol.
ESC-520.002         0.25 - 2 0.05 < ± 3.0% < ± 1.8% < ± 0.6% < 0.5% < 0.35% < 0.1%
ESC-520.005         1 - 5 0.1 < ± 2.0% < ± 1.3% < ± 0.6% < 0.5% < 0.35% < 0.1%
ESC-520.010          1 - 10 0.25 < ± 1.5% < ± 1.1% < ± 0.6% < 0.5% < 0.35% < 0.1%



Calibrex Solutae

  Inaccuracy (Rel. err.%) Imprecision (CV %)
Cat. No. Vol. mL Div. mL Min. vol. Mid. vol. Max. vol. Min. vol. Mid. vol. Max. vol.
ESC-530.025         2.5 - 25     0.5 < ± 1.5%     < ± 1.1%     < ± 0.6%   < 0.5%        < 0.35%   < 0.1%
ESC-530.050 5 - 50 1.0 < ± 1.5% < ± 1.1% < ± 0.6% < 0.5% < 0.35% < 0.1%
ESC-530.100 10 - 100 1.0 < ± 1.5% < ± 1.1% < ± 0.6% < 0.5% < 0.35% < 0.1%




Calibrex 520 Features

Calibrex 520 Features



Friendly digital volume setting

Adjustment is fast and precise even with a gloved hand. An efficient click-stop mechanism prevents unwanted alteration. Large display is easy to read; the window adjusts to desired side of instrument body. A true digital system contributes to the long-term calibration stability. Each step on the cylindrical cam is pre-calibrated and corresponds to one division on the volume adjustment scale.
  Top of Page

Optimised working position
The instrument rotates 360° for adequate positioning on top of the bottle.
  Top of Page

Air filter
Air inlet can be enlarged to receive a membrane filter, if airborne contamination is a concern.
  Top of Page

In-lab calibration

The CalibrexTM dispensers are factory calibrated, but can be easily recalibrated by means of a dedicated adjustment screw.
Click stops of the 520 model provides for convenience and stability. Each stop corresponds to a given volume published in the calibration section of operating instructions.
  Top of Page

Easy maintenance
Disassembling / reassembling is facilitated by the limited number of well-connected parts - no tool needed. Key elements such as valves, plunger, barrel and delivery jet can be removed in seconds for cleaning.
All CalibrexTM dispensers are autoclavable fully assembled at 121°C / 250 °F.
  Top of Page

Superior material selection

Special attention is paid to component materials, providing for long instrument life. Parts coming in contact with the liquid flow are chemically inert.
  Top of Page

QR coded chemical compatibility
Printed QR code for instant access to chemical resistance chart.
  Top of Page

QC certificate

Each instrument bears its own serial number and passes strict performance control attested by an individual QC certificate.



Calibrex 530 Features

Calibrex 530 Features






Volume setting and graduation scale



Dual scale enables volume reading from a wide angle.

Locking position for safe dispenser transportation.
  Top of Page

Setting buttons

Spring loaded sliding cursor softly moves up and down dual scale and precisely stops at desired graduation.








Classical screw-type volume setting button easily replaces the original sliding cursor, according to user preference.
  Top of Page

Flow control stopcock
Next to its dispensing position (2), device enables liquid priming and recycling (1) without reagent loss or contamination. Locking position (3) for safe dispenser transportation.
  Top of Page

Robustness
Glass barrel with thick wall contributes to overall dispenser robustness.
  Top of Page

Transparent sleeve
Thick, transparent protection around glass barrel enables visual priming control. At the same time, it reduces risks of spillage in case of breakage.
  Top of Page

Optimal working position
The instrument rotates 360° for adequate positioning on the bottle. Free rotating dispenser body makes volume clearly visible from any position.
  Top of Page

Flexible connexion
Delivery jet absorbs shocks to reduce risks of breakage.
  Top of Page

Air filter
Air inlet can be enlarged to receive a membrane filter, if airborne contamination is a concern.
  Top of Page

Safety seal sticker
Autoclavable seal sticker prevents unwanted access to the calibration mechanism. Replacement stickers available with each instrument or in larger quantities as spare.
  Top of Page

Easy In-lab calibration
Mechanism with integrated key located under plunger cap. Engraved +/- arrows for easy and precise setting. Access protected by safety seal sticker.
  Top of Page

Maintenance
Disassembling/reassembling is facilitated by the limited number of well-connected parts – no tool needed. Key elements such as valves, plunger, barrel and delivery jet can be removed in seconds for cleaning. All models autoclavable fully assembled at 121°C.
  Top of Page

Material selection

Parts in contact with liquid flow are chemically inert, providing for stability and long instrument life.
  Top of Page

QR coded chemical compatibility
Printed QR code for instant access to chemical resistance chart.
  Top of Page

QC and warranty


Each dispenser bears its own serial number and passes a strict quality control attested by an individual certificate.
