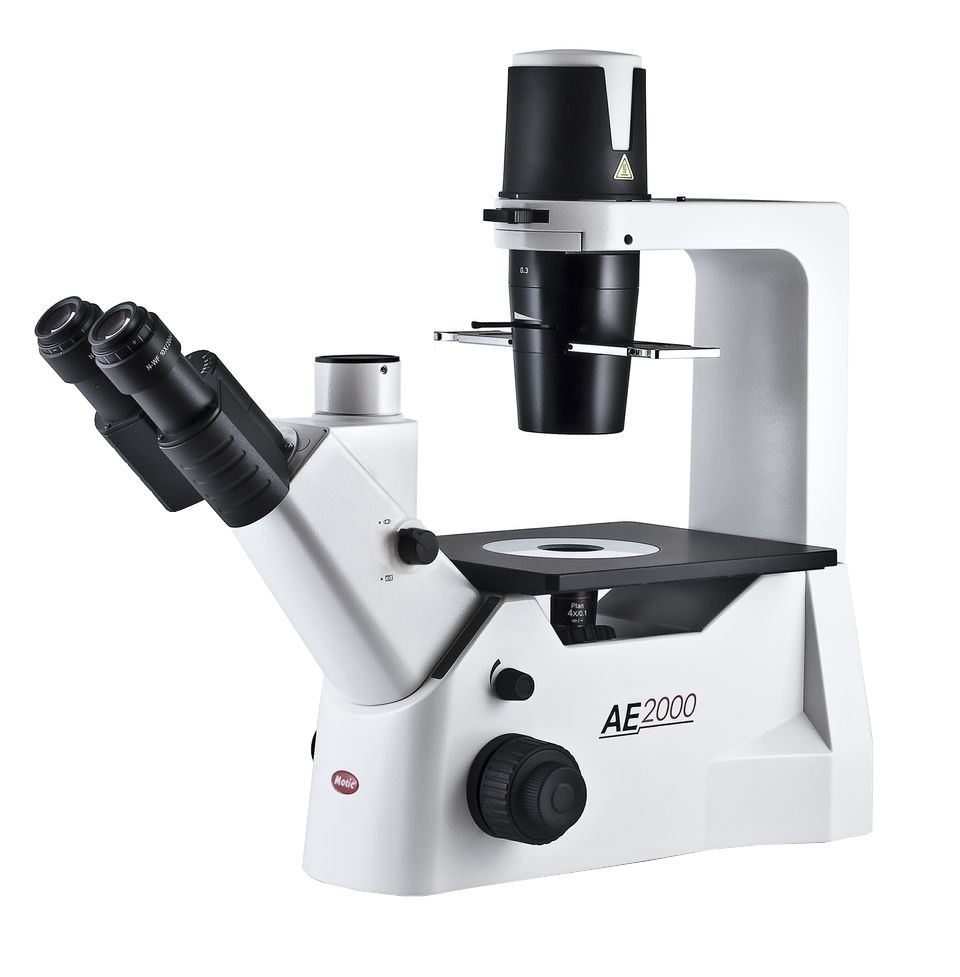

MOTIC AE2000 Trinocular Inverted Microscope (camera not included)


Motic’s new AE2000 Inverted Microscope is designed for routine live cell inspection with an easy and flexible set up, ideal for University, routine-clinical, and lab environments. The model’s main applications offer superior image quality when viewing cell cultures in microbiology, living organisms and tissue culture samples.



Motic’s new AE2000 Inverted Microscope is designed for routine live cell inspection with an easy and flexible set up, ideal for University, routine-clinical, and lab environments. The model’s main applications offer superior image quality when viewing cell cultures in microbiology, living organisms and tissue culture samples.

The newly designed Binocular Ergo tubes with 360° swiveling “butterfly” design offers the most comfortable observation position, especially useful for prolonged sample viewing. The auto on/off function of the power supply extends the lifespan of the sample and light bulb and at the same time saves energy. Another added feature, a modular interchangeable illumination concept, allows for the easy transition from Halogen to LED to fulfill a wide-range of customer viewing expectations. The improved phase contrast quality of the model makes the instrument suitable for a greater range of applications that demand precision optics.

The entire microscope including optical system is manufactured now completely Lead Free, following the International RoHS regulations.

  • Trinocular head Siedentopf type 45° inclined, 360º swiveling
  • Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups
  • Side facing quadruple nosepiece
  • CCIS Plan Achromatic objectives PL4X, LWD PL40X
  • CCIS Plan Achromatic Phase objectives PL Ph10X, LWD PL Ph20X
  • ELWD condenser N.A. 0.30
  • Phase slider Ph1, BF
  • Phase centering telescope
  • Plain stage with metal & glass stage inserts
  • Halogen illumination 6V/30W with intensity control and sleeping mode
  •

Specifications

Optical System : Colour Corrected Infinity Optical System [CCIS®]

Observation Tube : Widefield binocular 45°, 360° Swiveling

                               Widefield trinocular 45°, 360° Swiveling, light distribution 100:0/20:80

Eyepieces : Widefield high eyepoint, N-WF10X/20mm, with diopter adjustment

Nosepiece : Left side orientated, quadruple

Stage : 200X239mm surface

Condenser ELWD N.A. 0.3, working distance 72mm. Without condenser: working distance 184mm

Focus : By nosepiece movement, 8mm

             Coaxial focusing knobs

             Coarse focus with torque adjustment

             Fine focus with 2µm minimum increment

Illumination : 6V/30W Quartz Halogen illumination with intensity control, or 3W LED
