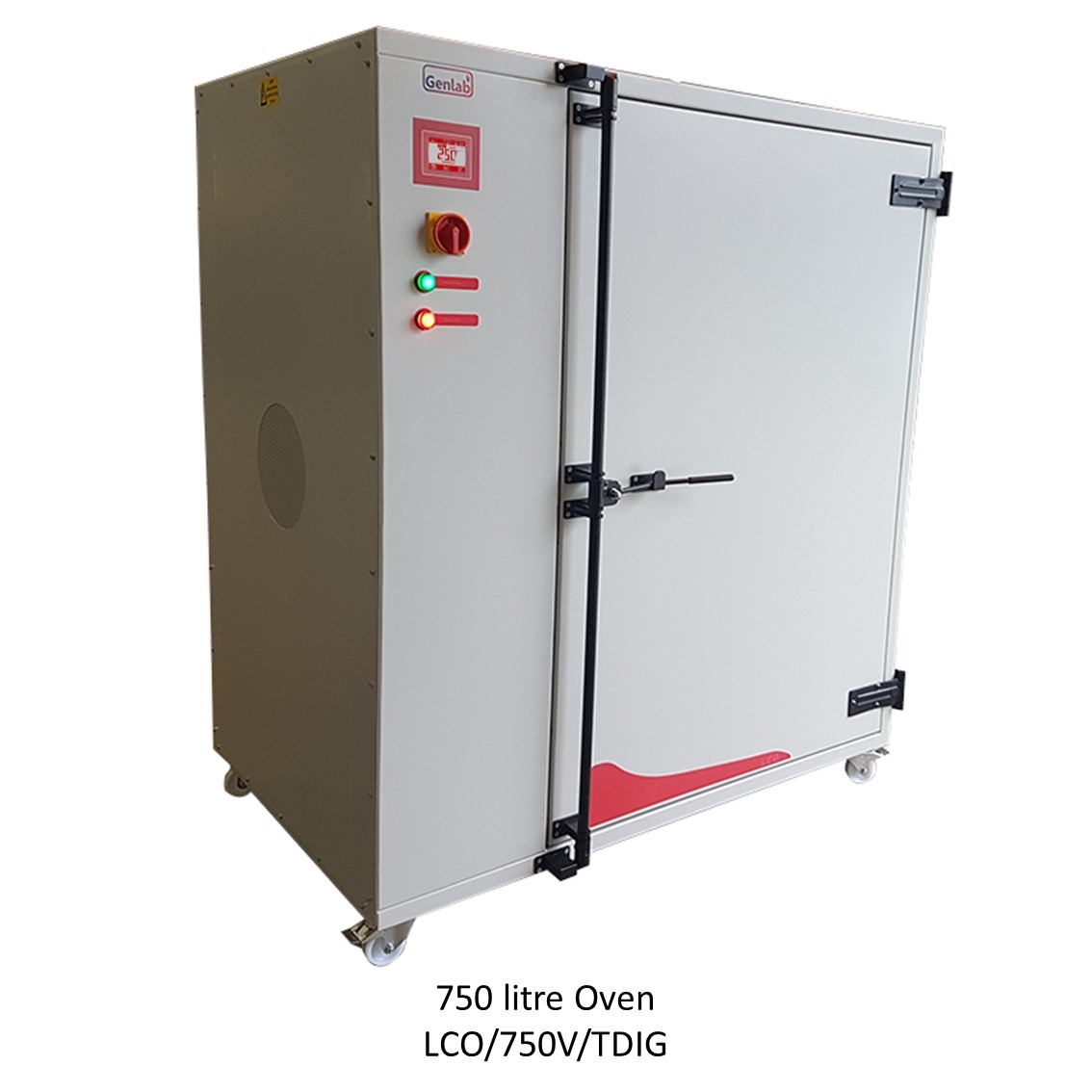

Large Capacity Multi-Purpose Ovens


• Microprocessor digital PID controller with LED display of temperature.
• Body powder coated, Steel interior coated with aluminium.
• Temperature range from ambient to 250 ºC.

No product option available.

The GENLAB Large Capacity Multipurpose Ovens offer a unique range of highly efficient, reliable and accurate units suitable for much larger applications in drying, curing, general laboratory and industrial uses.

Features

  • Capacities 250 to 1250 Litres
    8 sizes vertical style
    9 sizes horizontal style
  • Temperature range:
    50ºC to 250ºC
  • Microprocessor digital controller with dual display of set point and actual temperature
  • Safety overheat thermostat
  • 0-99 hour process timer
  • Forced convection fan circulation
  • Easy clean powder coated body
  • Aluminium coated mild steel chamber

Options

  • Stainless steel chamber
  • 300°C units available
  • Fitted Feet if castors not required
  • 8 segment program (4 ramp 4 dwell)

Accessories

  • Extraction systems
  • Timers/Recorders
  • Trolleys and racking
  • Other accessories available on request

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.

Heating

Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 9H and 12H which have a base fan duct.

Controls

The control system comprises of a PID Microprocessor Controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature. They also include mains switch with indicator and heat and overheat indicators.

The controller has a 0-99 hour process timer that can be selected for a fixed time period at a required set point plus an 8 segment program with 4 ramp and 4 dwell facility.

The control panels are fitted on the side of each unit except the 9H and 12H, which are fitted in the base.

Specifications



Horizontal Style
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
No. shelf
positions
Weight
(kg)
LCO/9H/DIG
250
54 x 92 x 44
94 x 109 x 57
3
4
80
LCO/12H/DIG
350
54 x 92 x 64
94 x 109 x 77
3
4
120
LCO/15H/DIG
425
76 x 92 x 64
97 x 141 x 81
4
5
150
LCO/18H/DIG
500
91 x 92 x 64
112 x 141 x 81
5
7
165
LCO/22H/DIG
650
91 x 92 x 77
127 x 157 x 95
5
7
180
LCO/27H/DIG
750
106 x 92 x 77
142 x 157 x 95
5
8
200
LCO/30H/DIG
850
122 x 92 x 77
158 x 157 x 95
5
9
220
LCO/35H/DIG
1000
142 x 92 x 77
178 x 157 x 95
5
11
240
LCO/42H/DIG
1250
142 x 122 x 74
178 x 187 x 92
5
11
275
