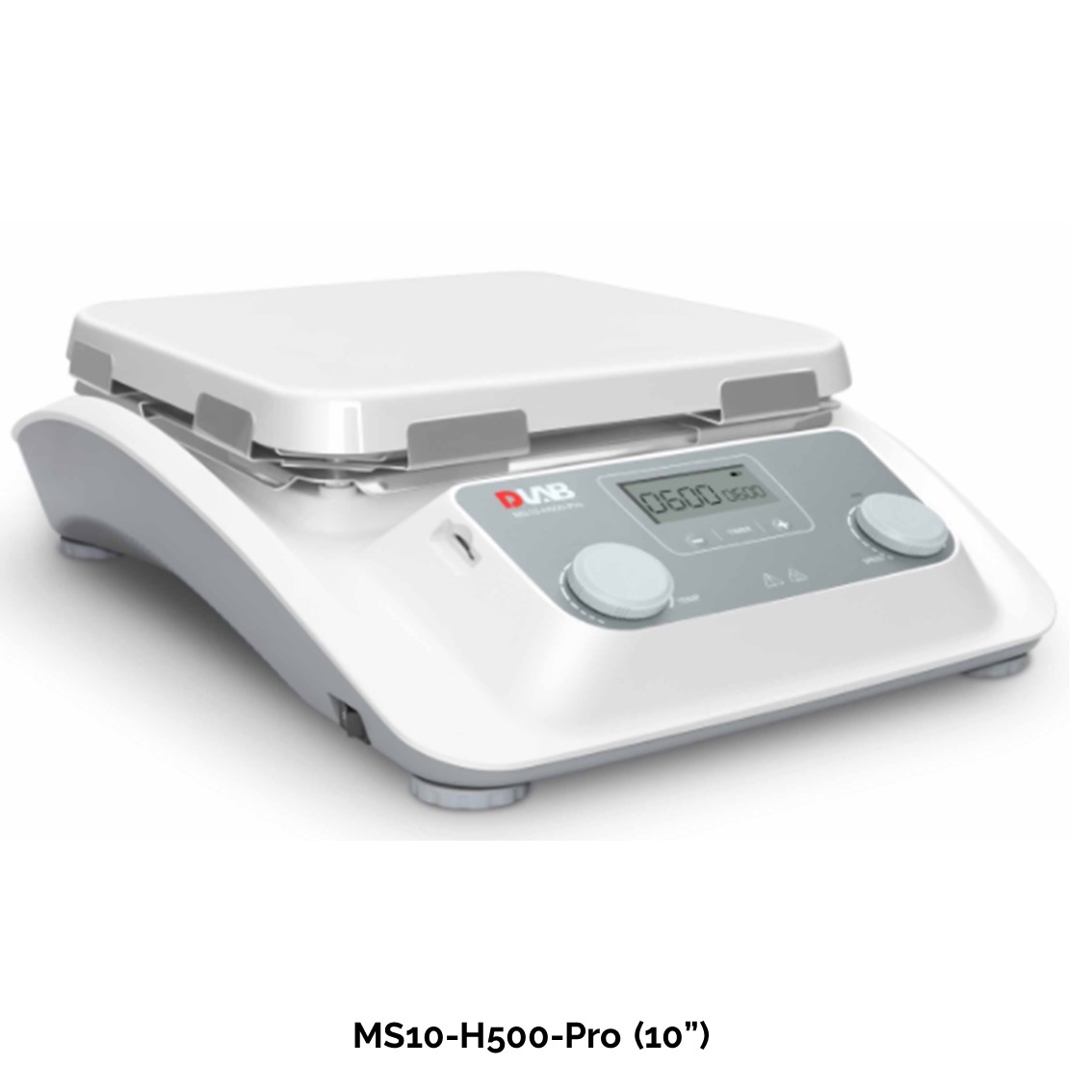

DLAB MS10-H500-Pro 10" LCD Digital Magnetic Hotplate Stirrer


- Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
- LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C
- Digital speed control of 100 ~ 1500rpm
Max. heating plate temperature 500℃
- The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
- Data connector : The SD card also records the instrument's running data in real time.
- Timing function: the running time of the instrument can be set.



  • Specifications
    Work plate Dimension [W x D] 254x254mm（10inch）
    Work plate material Glass ceramic
    Motor type Brushless DC motor
    Stirring positions 1
    Max. stirring quantity, [H2O] 30L
    Max. magnetic bar[length] 80mm
    Speed range 100-1500rpm resolution±1rpm
    Speed,time, Temperature display LCD
    Timer function 1min-99h59min
    Heating temperature range Room Temp.-500℃,  increment1℃
    Temperature control accuracy ±1℃ (<100℃)±1%(>100℃)
    Overheating protection 540℃
    Temperature display accuracy ±0.1℃
    External temperature sensor PT1000(±0.2℃)
    "Hot" warning         50℃
    Data connector SD card
    Protection class IP21
    Power 1400W
    Heating output 1350W
    Voltage Frequency 100-120/200-240V 50/60Hz
    Dimension [WxDxH] 328x424x138mm
    Weight 7.18kg
    Permissible ambient temperature and humidity 5-40℃，80%RH





Cat. No. P/N Descriptions Power supply
8030132117 MS10-H500-Pro LCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate，heating temperature up to 500°C


UK plug,200V-240V/50Hz/60Hz
8030132117 MS10-H500-Pro
package		 Include：LCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate，heating temperature up to 500°C（8030132117）+ PT1000A (18900016) + support clamp (18900017)
